Zn63 vs1 barruko tentsio altuko VCB
Zn63 VS1 Kexun-ek sortutako VCBko altuera handiko VCB, Txinan ekoizten da.

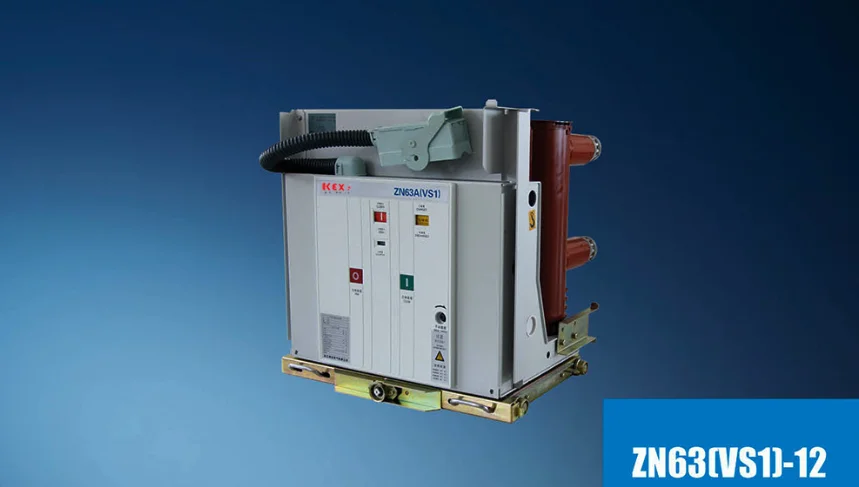

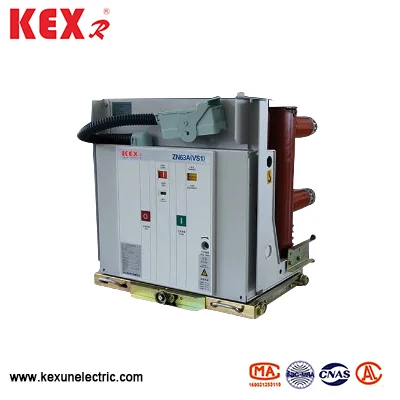

Eredua: zn63 vs1
Marka: kexr
Eredua: zn63 vs1
Marka: kexr
● Design feature
ZN63 VS1 Indoor high voltage vcb adopts the integration of VET operating mechanism and circuit breaker body, which can be designed as a fixed installation unit or a handcart unit with a special propulsion mechanism. The main circuit part can adopt integral sealed pole to realize miniaturization, high reliability and maintenance-free of the circuit breaker. It can be used with KYN28A-12(GZS) and other central handcart switchgear, and can also be used with XGN fixed switchgear.
● Using conditions
▶.Ambient temperature: ZN63 VS1 Indoor high voltage vcb should be operated at -10~40℃ (storage and transportation at -30℃ is allowed).
▶ Altitude: ZN63 VS1 Indoor high voltage vcb should be installed at an altitude of less than 1000m.
▶ Relative humidity: the daily average value is not more than 95%, the daily average value of saturated vapor pressure is not more than 2.2x10-MPa, and the monthly average value is not more than 1.8x10-MPa
Note：ZN63 VS1 Indoor high voltage vcb shall work in a place without fire, explosion, serious pollution, chemical corrosion and violent vibration.
◆ Meet the standard
IEC60265、IEC62271、GB3804、GB16926 etc..
● Technical parameters of ZN63 VS1 Indoor high voltage vcb
|
Item |
Unit |
Data |
|||
|
Rated voltage |
KV |
12 |
|||
|
Rated insulate level |
Rated lightning impulse withstand voltage（peak） |
KV |
75 |
||
|
Rated frequency |
1 Min working frequency withstand voltage |
42 |
|||
|
Rated short circuit break current |
KA |
20/25 |
31.5 |
40 |
|
|
Rated current |
A |
630 |
630 1250 |
1250 1600 |
|
|
1250 |
1600 2000 |
2000 2500 |
|||
|
|
2500 3150 |
3150 4000 |
|||
|
Rated thermal stability current （virtual value） |
KA |
20/25 |
31.5 |
40 |
|
|
Rated dynamic stable current（peak） |
50/63 |
80 |
100 |
||
|
Rated short-circuit closing current （peak） |
50/63 |
80 |
100 |
||
|
Rated short-circuit breaking current times |
Time |
50 |
|||
|
Power frequency withstand voltage of secondary circuit (1min) |
V |
2000 |
|||
|
Rated operating sequence |
|
O-0.3s-CO-180s-CO |
|||
|
O-180s-CO-180s-CO |
|||||
|
Rated thermal stability time |
S |
|
|||
|
Rated breaking current of single/back-to-back capacitor bank |
A |
630/400 800/400(40KA) |
|||
|
Mechanical life |
Time |
10000 |
|||
